UART - USB

Opis

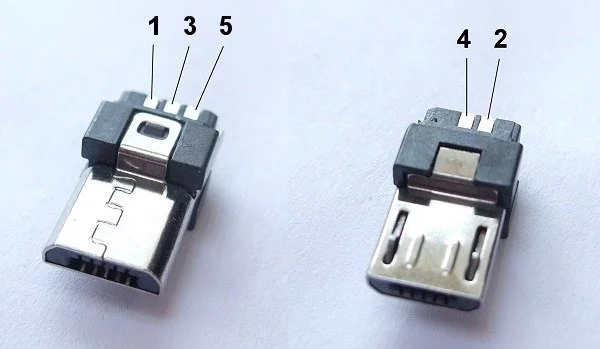

Rysunek 1. Pinout USB micro
  1. VBUS Red +5 V
  2. D− White Data−
  3. D+ Green Data+
  4. ID N/A: not connected
  5. GND Black Signal ground
Opis

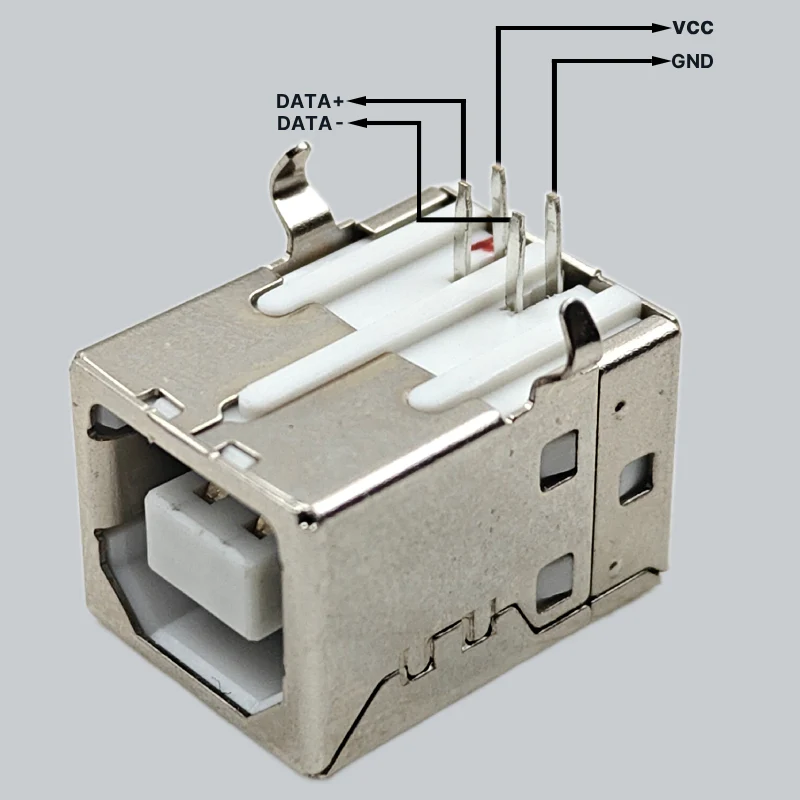

Rysunek 2. Pinout USB B
